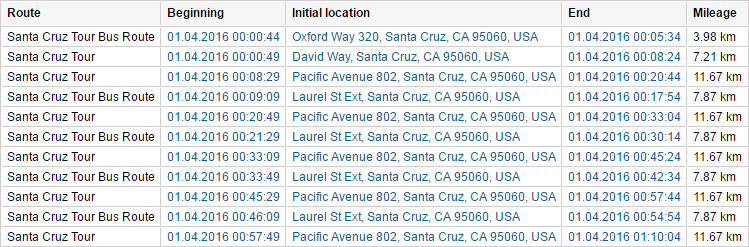

If any routes were assigned to a unit and events about routes were stored in the unit history, a report based on these events can be generated. The report can contain the columns described below.
Column | Description |
Route | The name of the route given during its creation. |
Schedule | The name of the schedule on the basis of which the route was created. |
Ride | The name of the ride. |
Beginning | The start time of the ride (activation time or entrance in the first check point). |
Initial location | The unit location at the beginning of the route. |
End | The end time of the ride (entrance to the last point). If the departure time is indicated in the schedule, the column displays the time of exit from the last point. |
Final location | The location of the last check point of the route visited by the unit. |
Result | Finished (the route was activated successfully, and later on, the entrance to the last point was detected), Not finished (the last point was not visited) or Aborted (the ride has been removed from the table manually or its expiration time has been reached). |
Skipped points | The number of skipped check points (a detailed report can be generated — Check points). |
Duration | The time taken to perform the route. |
Total time | The time from the beginning of the first route to the end of the last route. |
Mileage | The distance travelled while performing the route. |
Avg speed | The average speed on the route. |
Max speed | The maximum speed on the route. |
Count | The number of routes. |
Driver | The name of the driver (if available). |
Trailer | The name of the trailer (if it was assigned). |
Notes | An empty column for your custom comments. |
More information on how different route statuses are defined (route beginning, route end, point skipped, point visit, etc.) can be found here.
In a report template, you can indicate name masks for schedules and routes. In this case, only those rides that correspond to the specified route or schedule name mask will be included in the report. You can use both filters separately or simultaneously.
In addition, you can apply interval filtration by duration, mileage, engine hours, speed range, trips, stops, parkings, sensors, driver, trailer, fuel thefts and fillings.
