A template of the report on geofences and groups of geofences can contain a table of one type only: the Units table.
To execute reports on geofences and groups of geofences, the user should have the Request reports and messages and the View geofences access rights to the resource to which the geofences belong. Besides, the View object and its basic properties and the Request reports and messages access rights to the unit or units are required. |

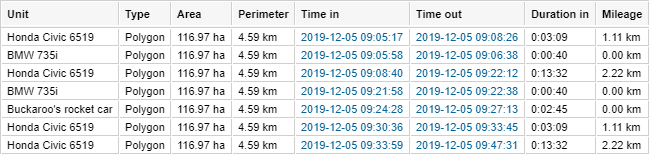

The Units table shows the information about what units visited the geofence or group of geofences, at what time they did it, how long they stayed there, at what speed they moved, etc.
When creating a template, you should select a unit or units which supposedly visited the geofence or group of geofences in the table settings. |
The Units table can include the columns described below.
Columns | Description |
Unit | The name of the unit which visited the geofence. |
Geofence | The name of the geofence the unit visited (only in reports on groups of geofences). |
Type | The type of the geofence (polygon, circle, or line). |
Area | The area of the geofence. |
Perimeter | The perimeter of the geofence. In the case of a line, its length is considered to be the perimeter, that is, its thickness is not taken into account. |
Description | The description of the geofence (is taken from the geofence properties). |
Time in | The time when the unit entered the geofence. |
Time out | The time when the unit left the geofence. |
Duration in | The time the unit stayed in the geofence. |
Total time | The time from the beginning of the first visit to the end of the last one. |
Parkings duration | The total parking time in the geofence. |
Off-time | The time during which the unit was outside the geofence from the first exit to the last entrance to the geofence. |
Mileage | The mileage inside the geofence. |
Mileage (adjusted) | The mileage adjusted to the coefficient specified on the Advanced tab of the unit properties. |
Off-mileage | The mileage outside the geofence from the first exit to the last entrance to the geofence. |
Initial mileage
| The value of the mileage sensor when the unit entered the geofence.
|
Final mileage
| The value of the mileage sensor when the unit left the geofence.
|
Off-mileage (adjusted) | The off-mileage adjusted to the mileage coefficient. |
Initial counter | The counter value detected when the unit entered the geofence. |
Final counter | The counter value detected when the unit left the geofence. |
Avg temperature | The average temperature during the time the unit was in the geofence. |
Min temperature | The minimum temperature during the time the unit was in the geofence. |
Max temperature | The maximum temperature during the time the unit was in the geofence. |
Initial temperature | The temperature detected when the unit entered the geofence. |
Final temperature | The temperature detected when the unit left the geofence. |
Avg speed | The average speed of the unit inside the geofence. |
Max speed | The maximum speed of the unit inside the geofence. |
Cargo weight | The average value of the weight sensor during the time the unit was in the geofence. |
Driver | The name of the driver if they were assigned to the unit. |
Trailer | The name of the driver if it was assigned to the unit. |
Visits | The number of visits to the geofence for the specified period. |
Consumed | The volume of the consumed fuel detected by all fuel sensors during the time the unit was in the geofence. |
Consumed by ImpFCS/AbsFCS/InsFCS/FLS | The volume of the consumed fuel detected by ImpFCS/AbsFCS/InsFCS/FLS during the time the unit was in the geofence. |
Consumed by math | The volume of the fuel consumed during the time the unit was in the geofence calculated by math. |
Consumed by rates | The volume of the fuel consumed during the time the unit was in the geofence calculated by rates. |
Avg consumption | The average fuel consumption detected by all fuel sensors during the time the unit was in the geofence. |
Avg consumption by ImpFCS/AbsFCS/InsFCS/FLS | The average fuel consumption detected by ImpFCS/AbsFCS/InsFCS/FLS during the time the unit was in the geofence. |
Avg consumption by math | The average fuel consumption calculated by math during the time the unit was in the geofence. |
Avg consumption by rates | The average fuel consumption calculated by rates during the time the unit was in the geofence. |
| Image | The images received from the unit. Viewing images in reports and the functions available while doing this are described here.
|
For the Units table, the same settings are available as for other tables.
For the report on a group of geofences, activate the Detalization option in the table settings to see the detailed information about the visits of the unit or units to each geofence.
