Disclaimer: features differ based on Subscription Plan

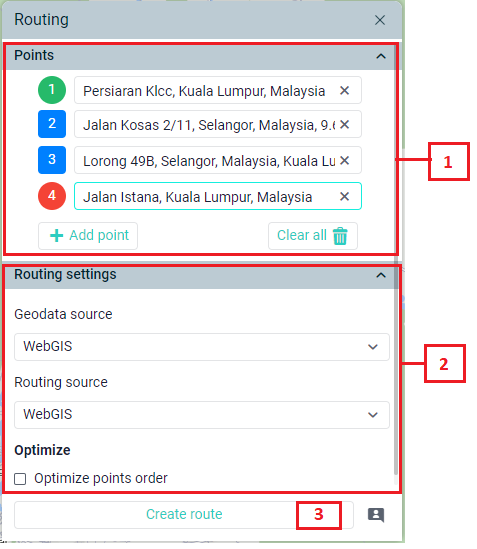

To create a route, follow the steps below.

  1. Specify the addresses of the obligatory route points and, if necessary, add any number of waypoints.

  2. Specify the routing settings, if necessary.
  3. Click Create route.

After that, the map displays the route built in accordance with the added points and the specified settings. To change the points or settings and build the route again, click on the icon in the upper-left part of the window, make the necessary changes and click Create route.

Route creation results

As a result of creating a route, you can see:

  • route option indicating the distance from the departure point to the destination point and the time required to travel this distance;
  • markers and addresses of all waypoints.

Also, you can see icons for saving the route as a geofence or route.

Saving the route

You can save the created route as a geofence or as a route to work with it on the Geofences or Routes tabs, respectively, and use it when monitoring units, running reports, configuring notifications, etc. To do this, the Create, edit and, delete geofences access right to the resource is required. Also, the following services should be enabled in the billing plan or account properties:

  • Geofences, to access the Geofences tab;
  • Routes, to access the Routes tab;
  • Geofence groups, to add the geofence to a group.

Two options are available:

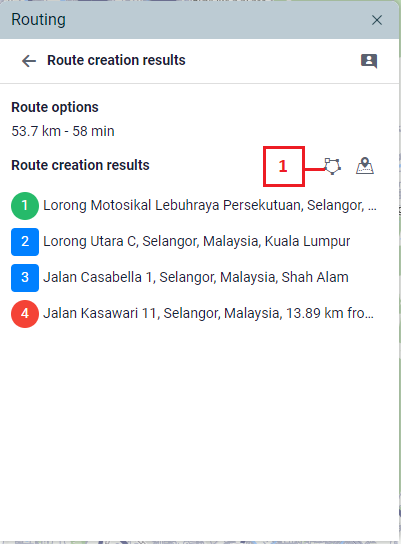

Save as geofence

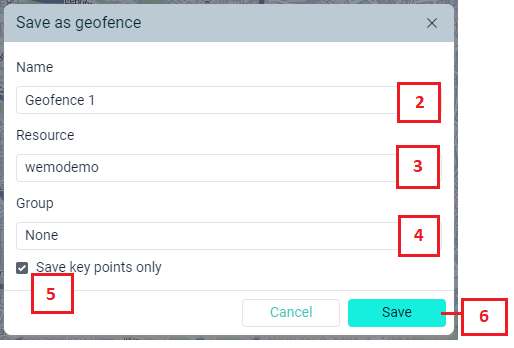

To save the route using this option, follow the steps below.

  1. Click on the icon .

  2. Enter the geofence name (1–1024 characters). See character restrictions.

  3. Select the resource in which the geofence should be stored.
  4. Select the group to which the geofence should belong (optional).
  5. If necessary, enable the Save key points only option:
    • if it is enabled, the saved geofence has the shape of a line which passes along the shortest way through the route check points without taking the roads and specified routing settings into account;
    • if it is disabled, the saved geofence has the shape of a line which passes through the check points, taking into account all the roads and the specified routing settings.
  6. Click Save.

Saving may take some time. As a result of successful saving, a geofence is created in the shape of a line corresponding to the planned route.

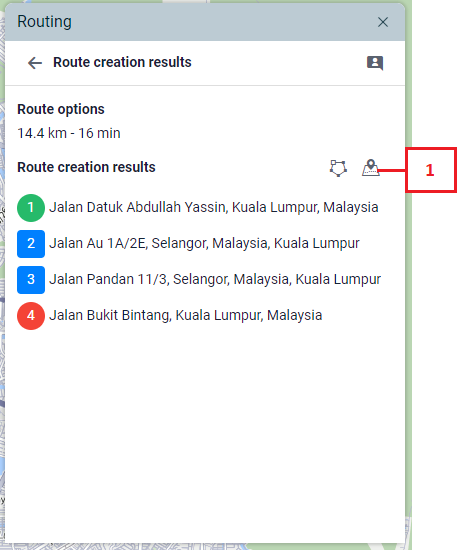

Save as route

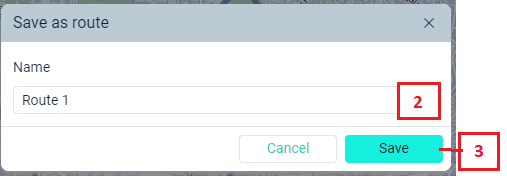

To save the route using this option, follow the steps below.

  1. Click on the icon .

  2. Enter the route name (4–1024 characters). See character restrictions.

  3. Click Save.

As a result of successful saving, a route is created. It consists of the check points of the planned route which are connected without taking the roads and specified routing settings into account.
