Disclaimer: features differ based on Subscription Plan


In this section, you can add the route points and work with them. To plan a route, you should specify the addresses of two obligatory points: the departure point and the destination point. You can also add any number of waypoints to the route.

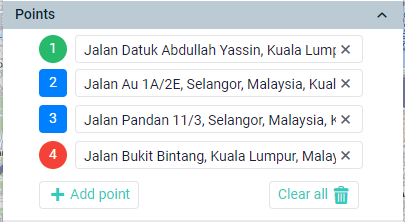

The following markers are used to indicate the added points in the list and on the map:

  • : departure point;
  • : waypoint;
  • : destination point.

Each marker has a sequence number of the point. The numbers change automatically depending on how many points are added and in what order they are arranged.

Adding points

You can add route points using one of the two methods:

MethodDescription
Entering an address in the point row

To add a point, follow the steps below.

  1. Click Add point.
  2. Click on a new row.
  3. Start entering the address (at least 3 characters).
  4. Select the required address from the drop-down list generated on the basis of the search results. The search is carried out using the geodata source selected in the routing settings. You can also select the address by pointing to it and pressing Enter.

The selected address is automatically added to the point row. To centre the map on the added point, click on the point marker in the list.

Clicking on the map

To add a point, click on the required location on the map. After that, a point marker is automatically added to the selected location.

Working with points

You can work with the route points in the list and on the map. All actions are synchronized automatically, that is, any change in the list is also applied to the map and vice versa.

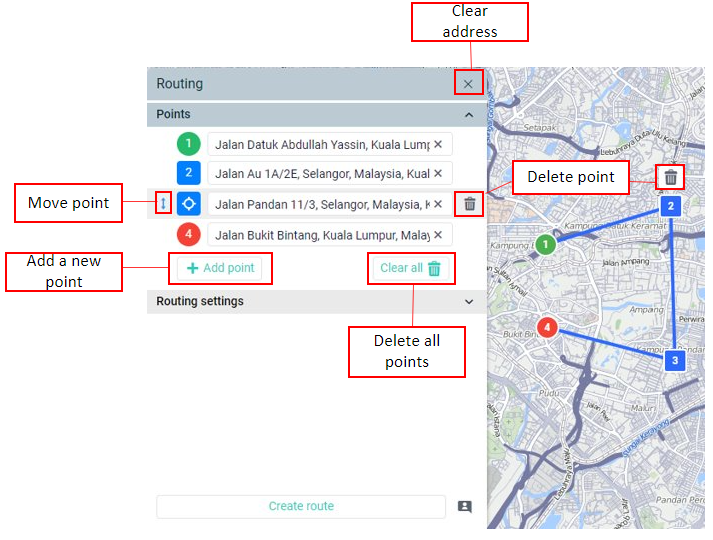

The following icons are available when working with points:

IconAction

Change the order of points. To do this, point to the row of the required point, click on the iconand move it to the required place holding down the left mouse button.

Centre the map on the route point. The icon is displayed when pointing to the point marker in the list.

Clear the point address.

Delete the point. The icon is displayed when pointing to the point row and after clicking on the point marker on the map.

When deleting the destination point, the last waypoint automatically becomes the destination point. When you delete the departure point, the first waypoint automatically becomes the departure point.

To delete all the added points at the same time, click the Clear all.

To change the order of points using the map, click on the marker of the added point and move it to the required location holding down the left mouse button.

When you zoom out on the map, the point markers that are close to one another are merged according to their order, for example: .

When points are merged, you can't delete them using the map. To delete the points, use the list in the tool window or zoom in on the map.
