Disclaimer: features differ based on Subscription Plan
Working with a table consists in:
- interacting with the toolbar;
- going to messages and points on the map;
- viewing images (if available).
For some tables, it is possible to view track segments corresponding to each message on the map (icon
). Read more about this and other features related to tracks in reports here.

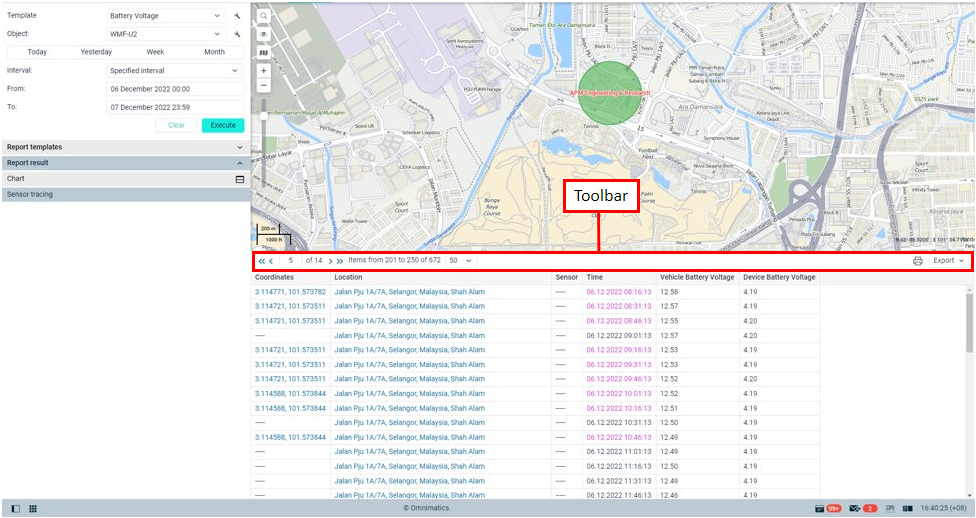

Toolbar
A report table can contain up to 100,000 rows, therefore, it is divided into pages. To navigate between pages, use the navigation buttons on the left side of the toolbar:
: go to the next page;
: go to the previous page;
: go to the first page;
: go to the last page.
To go to a specific page, enter its number in the Page field and press Enter. You can also adjust the number of rows per page by selecting one of the options (25, 50, 100, 200, 500) from the drop-down list to the right of the navigation buttons.
The following tools are available on the right side of the toolbar:
| Tool | Description |
|---|---|
| Print the report. See more information about this feature here. |
| Export the report. To download the report, expand the drop-down list and select the required format. The following formats are available for quick export: XLSX (export of tables and statistics), PDF (export of all the contents). The drop-down list also contains the option of export to file ( |
| Download all images for the report interval. Available if at least one of the report tables contains the Image column. The images are saved to an archive along with information about the date, time and place of their sending. |
| Close the table. Displayed when working with two tables, a table and a chart, or a table and statistics at the same time. |
Going to messages and places on the map
From a report table, you can navigate to messages and their corresponding points on the map.
The address and coordinates in the table are blue, while the time values are lilac. When you click on such cells, the corresponding place on the map is indicated with a marker.

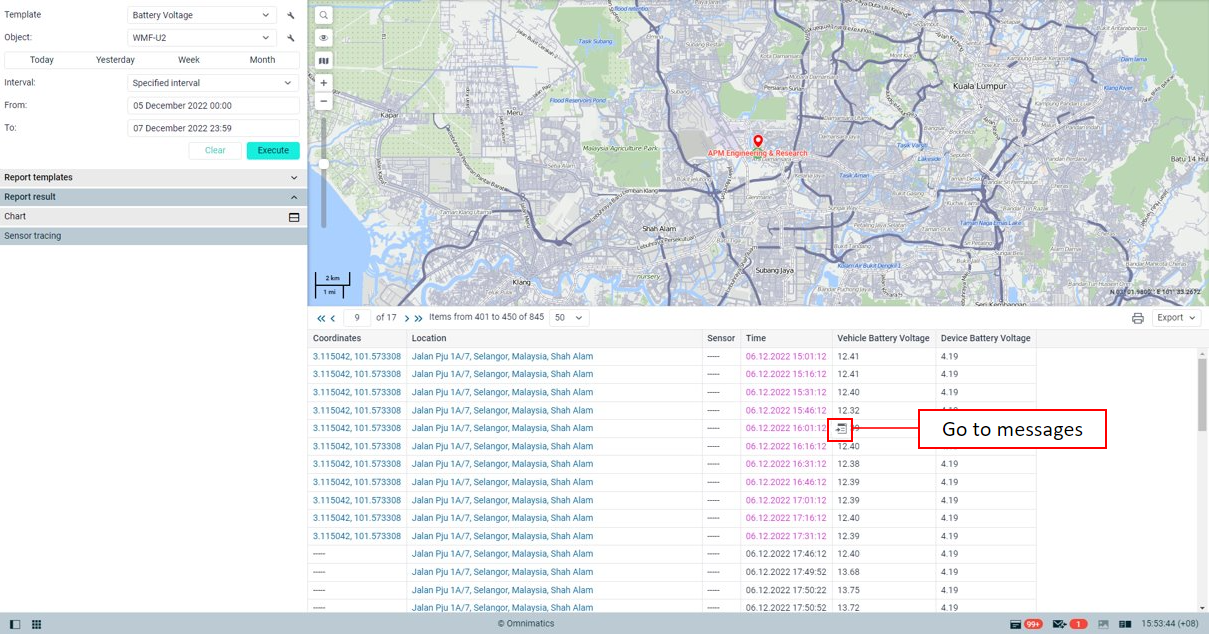

When you click on a time value, you can see the icon
which allows you to go to the table of data messages. The message received at the selected time is shown first in the table and has a gray background, and the place of its sending is indicated on the map with a marker. To hide the icon
, right-click on it or press Esc.
Viewing images

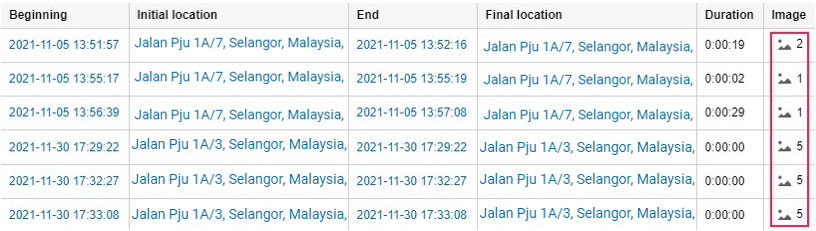

You can add the Image column to some report tables in order to see the images received from units. The column displays the number of images and the icon for viewing them (
).

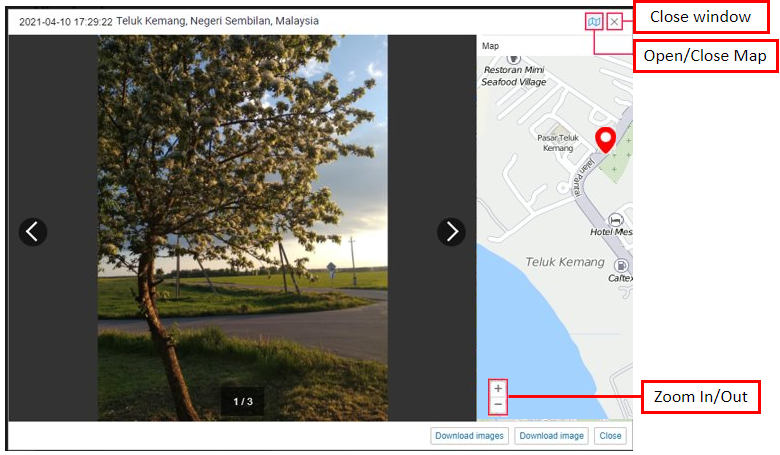

To see an image, click on the icon
. In the upper part of the window, you can see the date, time and place of its sending. If there are several images, use the left and right arrow buttons to navigate between them.
You can see the place from which the image was sent on the map. To do this, click on the icon
. The map is displayed in the right part of the window and is centred on the place of the image sending. To change the map scale, use the buttons
/
.
To download images, use one of the buttons:
| Button | Description |
|---|---|
Download image | Allows you to download the viewed image as a JPEG file. |
Download images | Allows you to download all images (if there are several) as an archive. If there is only one image, it is saved as a JPEG file. |
The downloaded images contain information about the date, time and place of their sending.
To close the window for viewing images, click on the Close button or on the icon
.
