Disclaimer: features differ based on Subscription Plan

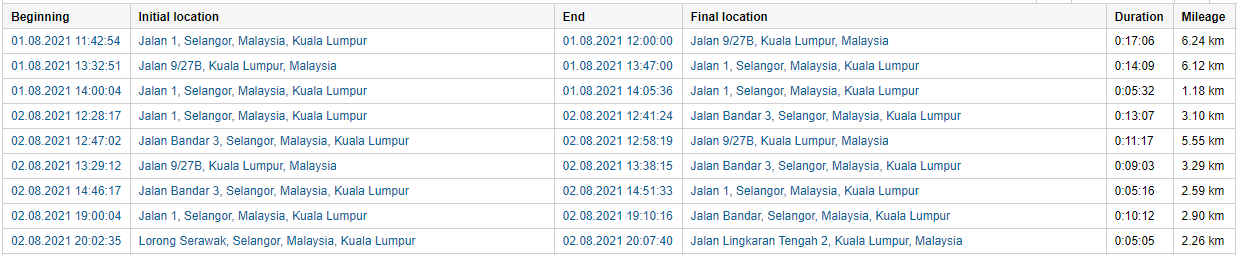

The Trips report shows the intervals of movement with the indication of time, location, and other parameters such as speed, mileage, fuel, and many others. The intervals of movement (trips) are detected according to the parameters set on the Trip detector tab and adjusted for each unit individually.
The table can include the columns described below.
Column | Description |
Beginning | The date and time when the trip began. |
Initial location | The address where the device was at the beginning of the trip. |
Initial coordinates | The geographical coordinates of the location of the unit at the beginning of the trip (in decimal degrees). |
End | The date and time when the trip ended. |
Final location | The address where the unit was at the end of the trip. |
Final coordinates | The geographical coordinates of the location of the unit at the end of the trip (in decimal degrees). |
Driver | The name of the driver (if assigned). |
Trailer | The name of the trailer (if assigned). |
Passengers count | The number of passengers transported within a trip. |
Duration | The time interval of the trip. |
Total time | The time from the beginning of the first trip to the end of the last trip. |
Off-time | The period of time passed from the end of the previous trip to the beginning of the current one (defined beginning from the second trip). |
Following off-time | The period of time passed from the end of the current trip to the beginning of the next one. |
Engine hours | The time of the operation of engine hours during the trip. |
Mileage | The distance travelled by the unit during the whole trip. |
Mileage (adjusted) | The mileage taking a coefficient set in unit properties (the Advanced tab) into account. |
Urban mileage | The distance travelled in the urban area. |
Suburban mileage | The distance travelled in the suburban area (that is at high speed). The urban/suburban speed line is indicated in the Unit properties on the Advanced tab (the Urban speed limit setting). |
Initial mileage | The value of the mileage sensor at the beginning of the trip. If there are no sensor readings, the initial value is calculated by the mileage counter from the beginning of the report interval to the first trip. |
Final mileage | The mileage sensor value at the end of the trip. |
Avg speed | The average speed within the trip. |
Max speed | The maximum speed registered within the interval. |
Trips count | The number of trips at the interval (can be useful if you have enabled grouping by years/months/weeks/days/shifts or if you run the report for a unit group). |
Counter | The counter sensor value. |
Initial counter | The counter value at the beginning of the trip. |
Final counter | The counter value at the end of the trip. |
Avg engine revs | The average rate of engine revolutions. |
Max engine revs | The maximum rate of engine revolutions. |
Avg temperature | The average temperature value registered in a trip. |
Min temperature | The minimum temperature value registered in a trip. |
Max temperature | The maximum temperature value registered in a trip. |
Initial temperature | The temperature value at the beginning of a trip. |
Final temperature | The temperature value at the end of a trip. |
Status | The unit status registered during the trip. It can be registered manually or automatically by means of a notification. If there are several registered statuses, the first of them is displayed. |
Cargo weight | The average value of cargo weight during the trip. |
Messages count | The number of messages that formed the trip. |
Consumed | The volume of consumed fuel detected by any sort of fuel sensor. If several such sensors are available, their values sum up. |
Consumed by... | The volume of consumed fuel detected by a fuel sensor or calculated by math or rates. |
Rates deviation by... | The difference between consumed fuel detected by a sensor and consumption rates. If a number in this cell is negative, it means the detected consumption does not exceed the indicated rates. |
Avg consumption | The average fuel consumption by any sort of fuel sensor. If several such sensors are available, their values sum up. |
Avg consumption by ImpFCS/AbsFCS/InsFCS/FLS/math/rates | The average fuel consumption during the trip detected by one of the methods mentioned above. |
Avg consumption in idle run by... | The average fuel consumption during the idle run. |
Avg mileage per unit of fuel by... | The average fuel consumption (per one liter/gallon) detected by one of the methods mentioned above. |
Initial fuel level | The fuel level at the beginning of the trip. |
Final fuel level | The fuel level at the end of the trip. |
Max fuel level | The maximum fuel level during the trip. |
Min fuel level | The minimum fuel level during the trip. |
Penalties | The penalties calculated for the adjusted Eco driving criteria. |
Rank | The received penalty points converted into a grade using a 6-point scoring system. |
Avg value of custom sensor | The average value of a custom sensor during the trip. |
Min value of custom sensor | The minimum value of a custom sensor during the trip. |
Max value of custom sensor | The maximum value of a custom sensor during the trip. |
Initial value of custom sensor | The custom sensor value at the beginning of a trip. |
Final value of custom sensor | The custom sensor value at the end of a trip. |
Notes | An empty column for your custom comments. |
| Image | The images received from the unit. Viewing images in reports and the functions available while doing this are described here.
|
The availability of the Toll roads mileage and Toll roads cost columns is stipulated by a special service. Contact your service provider if you want to use this functionality.
See data in reports to find more about formatting time, mileage, fuel, etc.
Also, the interval filtration by duration, mileage, engine sensor, engine hours, speed range, stops, sensors, driver, trailer, and geofences/units can be applied to this table.
The tracks of the trips can be displayed on the map. To make use of this feature, in the report template, select the options connected with the rendering of tracks on the map.
