WemoFleet can track trips between geofences if one of them (or several) is set as the starting point, and the other (or several) as the final one. The trips are displayed in a report under the following conditions:

  • the unit has left the starting point and has entered the final one;

  • according to the detector, there have been trips between the starting and final points.

This report is useful, for instance, to control the transportation of cargo from one place to another in several trips.

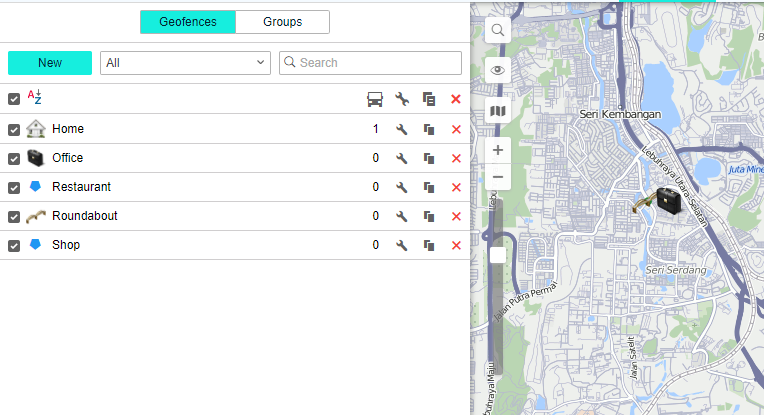

Preparing geofences

To get a report on trips between geofences, you must first create geofences that determine the beginning and end of the trip. The beginning and the end can be the same geofence if the trip starts and ends in one place, for example, if you need to transport cargo from point A to point B and this will take more than one trip. Create two geofences and then specify them as the starting and ending points in the report template.

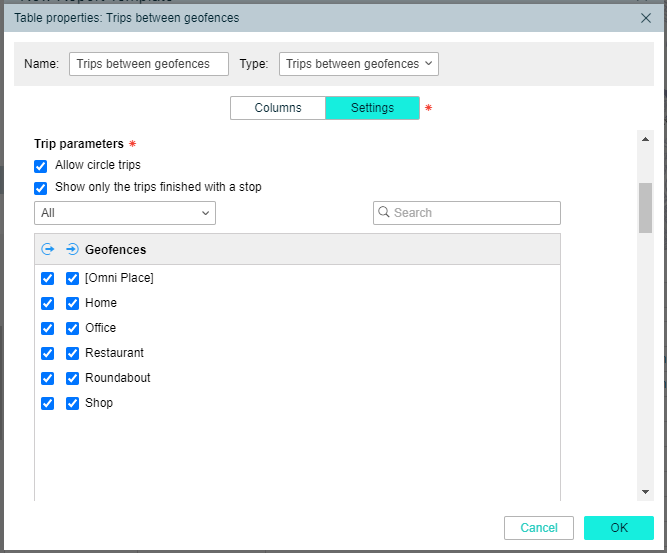

Trip parameters

When you create a report template for trips, you can set additional parameters for it.

Allow circle trips

Activate this option if the beginning and end of the trip should be at the same point. In this case, a certain geofence or unit should have both checkboxes selected (the beginning and end of the trip).

Show only the trips finished with a stop

This can be used as an additional filter. If this option is selected, only visiting the geofences with a stop at the final point are considered the end of the trip. Note that a stop is considered to be a unit state in which its speed is less than the minimum moving speed indicated in the trip detector. A trip begins when a unit leaves the starting point. If a unit enters the final destination (after the beginning of the trip has been detected), but does not make a stop there, the trip continues.

Starting and terminal points

In this section, you choose which geofences and units will be analysed in the report. You can not only use the geofences from the resource in which the report template is created but also the geofences from other resources to which the user has the View geofences access right. The resource is chosen in the dropdown list above the geofences' names. You can also select the All option for the list to contain the geofences from all the resources to which the user has the necessary access right. The geofences in the list are sorted by name. To quickly find one, use the dynamic filter.

In addition, you can use units as 'moving geofences'. For them, you can additionally set the radius of the unit zone. Both geofences and units are arranged in alphabetical order. To quickly find the required item, use the filter. What is more, the beginning of the trip may be in the unit zone, and the end — in the ordinary geofence. For instance, three cars work in the field and harvest, and one takes the crop to the warehouse.

If a unit simultaneously gets into several geofences (unit zones) specified as starting or terminal points of the trip, the geofence (unit zone) with the smallest area is included in the report.



If the Counter column is selected for the table, you can indicate its mask in the Sensors masks field on the Settings tab. Besides, interval filtration can be applied to this table: by duration, mileage, engine hours, speed range, trips, stops, parkings, sensor state, driver, trailer, fuel thefts, fillings, and geofences/units.

The monitoring system provides a possibility of detecting geofence visit in case a trip intersects a geofence by any segment of its track. This option can be enabled in the advanced settings of a report template.

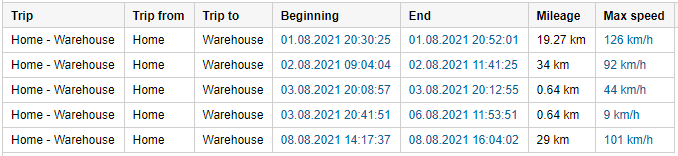

Report on trips

The report on trips gives the list of all performed trips. The table can contain the information described below.

Column

Description

Trip

This column specifies the start and end point of movement (names of geofences or units are hyphenated).

Trip from

The departure geofence.

Trip to

The destination geofence.

Beginning

The date and time when the trip began.

End

The date and time when the trip ended.

Mileage

The distance travelled during the trip.

Mileage (adjusted)

The mileage subject to the coefficient set in unit properties (Advanced tab).

Trip duration

The amount of time spent to perform the trip.

Total time

The time from the beginning of the first trip to the end of the last one.

Parkings duration

The total amount of time spent on parkings during the trip.

Avg speed

The average speed calculated for the trip.

Max speed

The maximum speed registered during the trip.

Driver

The name of the driver (if identified).

Trailer

The name of the trailer (if it was assigned).

Counter

The counter sensor value (can be helpful either in grouping table data by years/months/weeks/days/shifts or for the reports on unit groups).

Initial counter

The counter value at the beginning of the trip.

Final counter

The counter value at the end of the trip.

Avg temperature

The average temperature value registered during a trip.

Min temperature

The minimum temperature value registered during a trip.

Max temperature

The maximum temperature value registered during a trip.

Initial temperature

The temperature value at the beginning of a trip.

Final temperature

The temperature value at the end of a trip.

Count

The number of trips.

Status

The unit status registered during the current trip. It can be registered manually or automatically by means of a notification. If there are several registered statuses, the first of them is displayed.

Cargo weight

The average value of cargo weight during the trip.

Consumed

The volume of consumed fuel detected by any sort of fuel sensor. If several such sensors are available, their values sum up.

Consumed by ImpFCS/AbsFCS/InsFCS/FLS/math

The volume of consumed fuel detected by a fuel sensor (such as impulse/absolute/instant fuel consumption sensor, fuel level sensor) or calculated by math.

Avg consumption

The average fuel consumption by any sort of fuel sensor. If several such sensors are available, their values sum up.

Avg consumption by ImpFCS/AbsFCS/InsFCS/FLS/math

The average fuel consumption during the trip detected by one of the methods mentioned above.

Initial fuel level

The fuel level at the beginning of the trip.

Final fuel level

The fuel level at the end of the trip.

Max fuel level

The maximum fuel level.

Min fuel level

The minimum fuel level.

Penalties

The penalties calculated for adjusted Eco driving criteria.

Rank

The received penalty points converted into a grade using a 6-point scoring system.

Notes

An empty column for your custom comments.

ImageThe images received from the unit. Viewing images in reports and the functions available while doing this are described here.


More information on unfinished trips can be found here.
